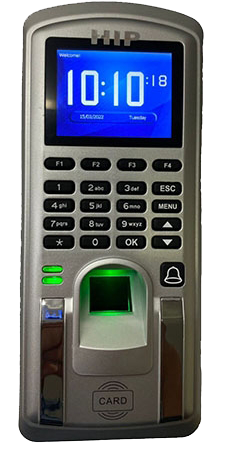

Linux based access control and T&A terminal with visible light facial recognition


HIP_809U is an elegant biometric access control system to manage employee access & attendance. Fingerprints can be easily read no matter dry or wet, making the access with attendance process more convenient. It equipped with a external backup battery to continue operating in the trouble of power-failure. It is possible to manage it by network through its TCP/IP and it has a USB port for manual data transfer using a memory Disk. Moreover, 809U is a device could support PC Software for attendance reporting purpose


LCD Screen & Resolutions 2.4 inch TFT Color Screen
Fingerprint Capacity 5,000 FP Templates
User Capacity 5,000 Users
Card Capacity 5,000 Cards (ID Module / Mifare Optional)
Records Capacity 100,000 Logs
Communication Protocols TCP/IP, USB Port
Fingerprint Sensor Resolution 500DPI (Scratch Resistant Optical sensor)
Authentication Method Fingerprint, Card or PIN (3 In 1)
Power Supply 12VDC 1A
Extra Features Wiegand 26/34, Door Lock, Release Button, Door Sensor
